| مكان المنشأ: | قوانغدونغ، الصين |
|---|---|
| اسم العلامة التجارية: | UNIMETRO |
| إصدار الشهادات: | CE,ISO |
| رقم الموديل: | سلسلة إس في |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | حالة خشبية + حزمة فراغ |
| وقت التسليم: | 15 ~ 20 يومًا |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 5 مجموعات في الشهر |
| نموذج: | سلسلة إس في | اسم المنتج: | آلة قياس الرؤية الأوتوماتيكية بالكامل - SV3 |
|---|---|---|---|
| التكرار: | 2 أم | دقة: | 2+لتر/200 ميكرومتر |
| قرار المقياس الخطي: | 0.5mm (0.1mm إذا اخترت) | وضع القياس: | أوتوماتيكية بالكامل |
| يدعم: | تصنيع المعدات الأصلية، أوديإم، تخصيص | مشهد التطبيق: | مختبر/صناعي |
| ضمان: | 12 شهرا | الوزن (كجم): | 400 |
| قياس الغضب: | 300/300/200 | ||
| إبراز: | fully automatic video measuring instrument,vision measurement machine with warranty,precision part fast testing machine,vision measurement machine with warranty,precision part fast testing machine |
||

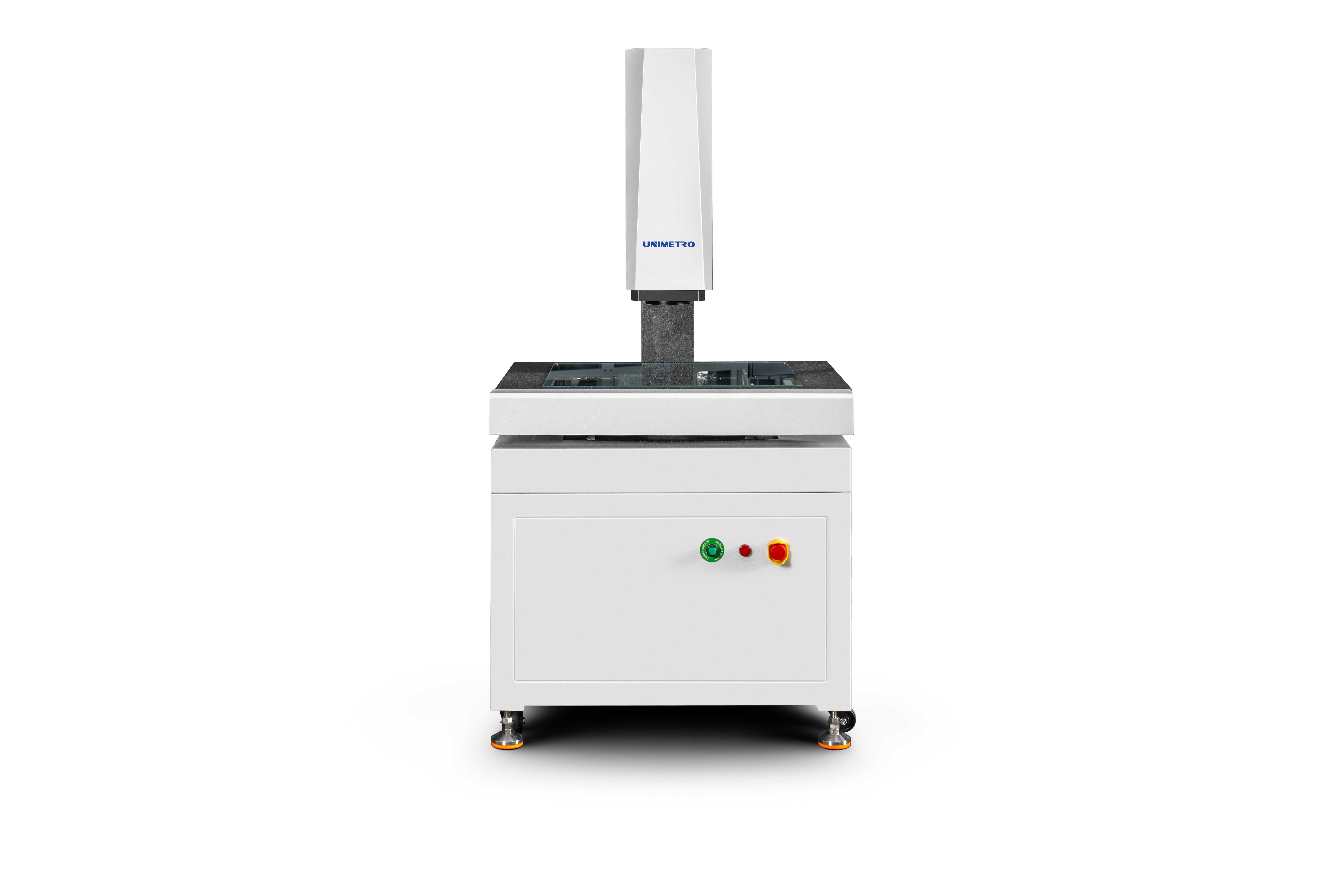

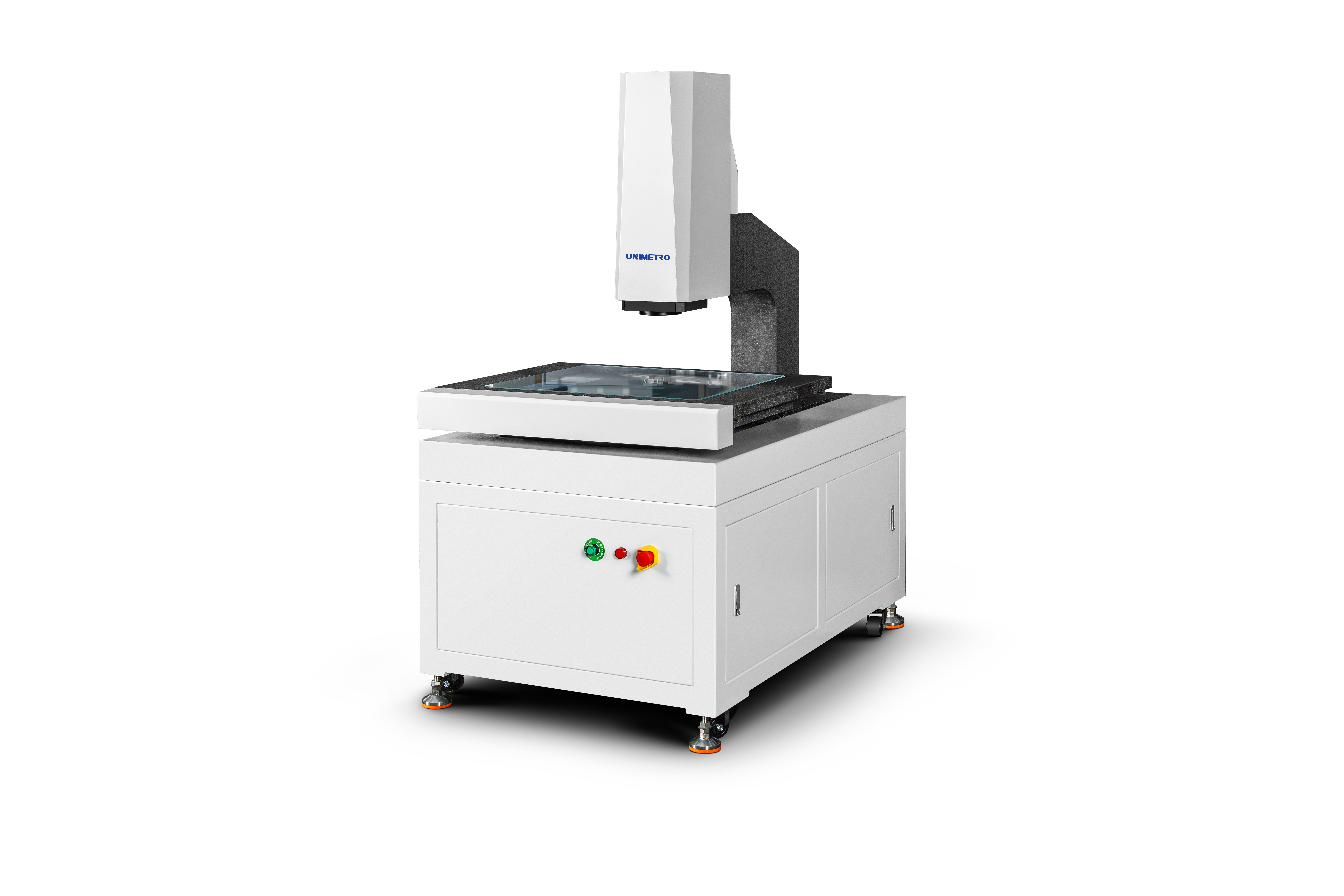

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring MARB (Multi-Axis Resolution Base) and SV (Super/Stable Video) technologies. This high-configuration system offers superior resolution and faster processing speeds for complex precision part testing.
Designed for three-axis fully automatic programmable detection, this instrument matches workpiece coordinate systems through programming to execute automated measurement processes. It includes memory, learning, and auto-programming functions for repeated measurements of heavy workpieces, enabling rapid and accurate real-time measurement on-site.
Constructed with high-stability marble base, this system provides exceptional durability with low maintenance costs, perfectly balancing high precision, efficiency, and long-term reliability for quality control in large-scale, complex manufacturing industries.
| Model | SV-3 | SV-4 | SV-5 | SV-6 |
|---|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 650/950/1740 | 730/1040/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300×200×200 | 400×300×200 | 500×400×300 | 600×500×200 |
| Accuracy (μm) | 2 +L/200 | 2 +L/200 | 2 +L/200 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Resolution: 0.5μm (0.1μm optional)
Camera: Industrial-grade color CCD camera
Lens: 1x-10x (Variable magnification)
Magnification: 20X - 200X (Varies by camera model)
Work Distance: 85 mm

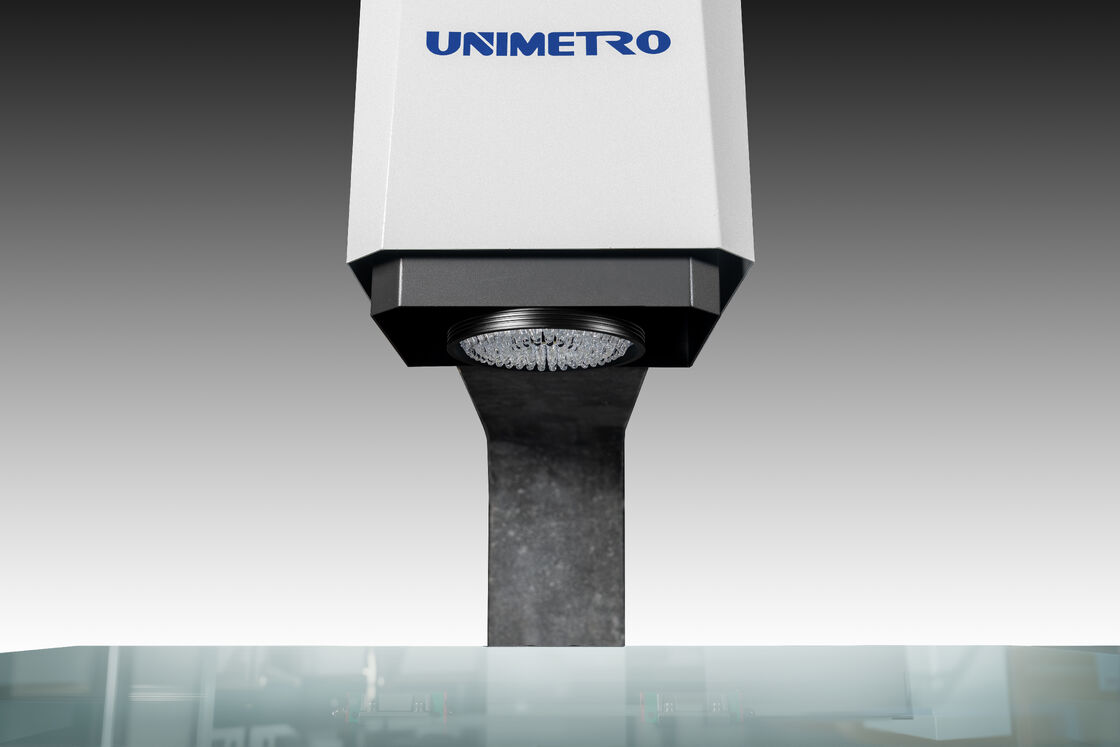

Illumination: Programmable surface light, LED bottom parallel light (Optional: coaxial light)
Drive System: CNC control, linear motor drive; Joystick, mouse keyboard control
Linear Scale Resolution: 0.1μm
The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets for automatic transformation of full-scale measurement on a single device, significantly improving productivity.
